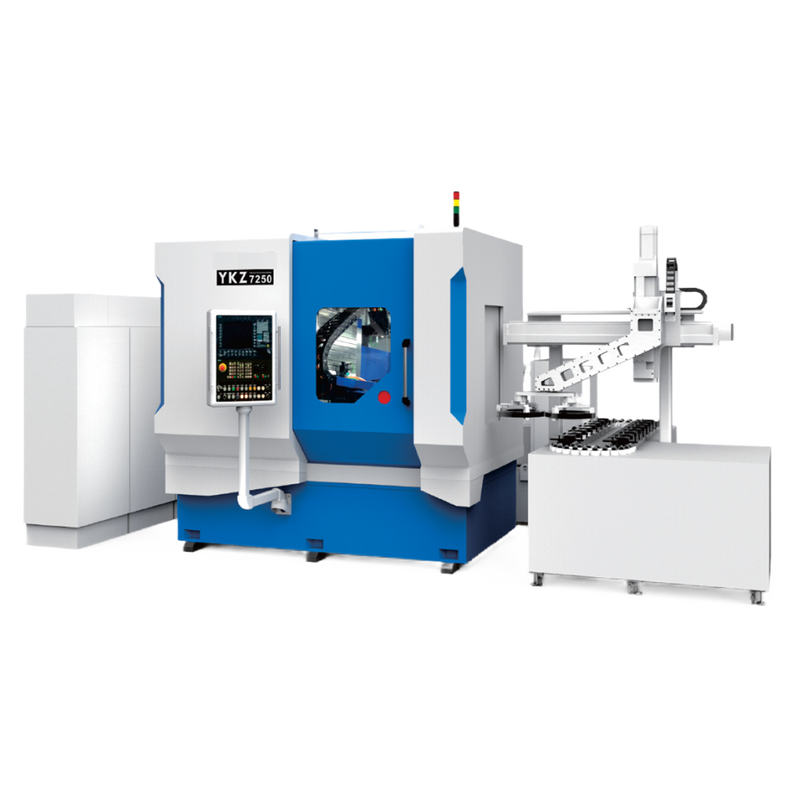

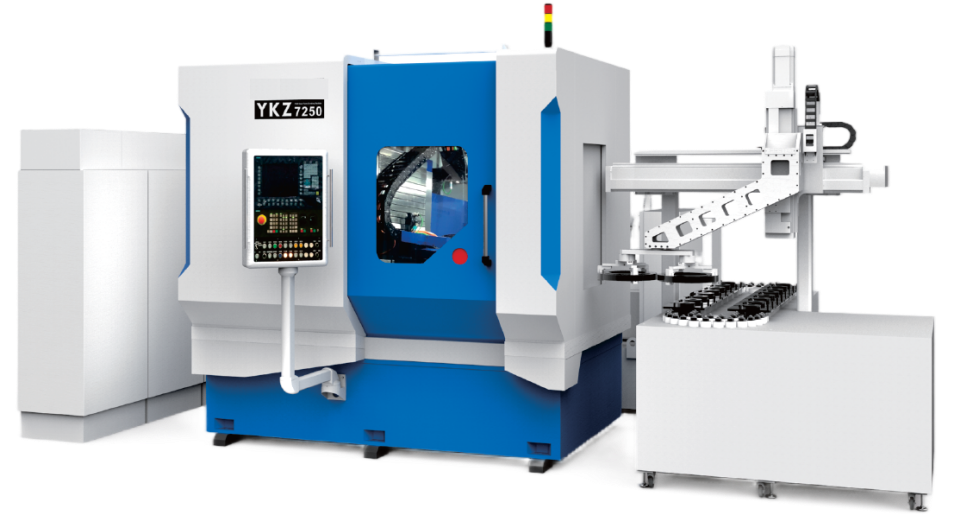

YKZ7250 CNC Worm Gear Grinding Machine Suitable for Mass Precision Grinding of Involute Cylindrical Gears in Industries

Functions and applications of machine tools

The YKZ7250 CNC worm gear grinding machine adopts the continuous generating grinding principle, similar to the gear hobbing process, and is suitable for mass precision grinding of involute cylindrical gears in industries such as construction machinery, automobiles, and speed reducers. The machine tool features a thermally symmetrical, high-rigidity structural design and utilizes advanced technologies such as direct drive technology and high-precision synchronous control technology, giving it high processing efficiency, accuracy, and stability.

Main features of the machine tool

· Employs high-speed continuous generating grinding, multi-head worm wheel dressing and grinding technologies, significantly improving grinding efficiency;

· High-rigidity (double support), high-power (38kW), and wide-wheel (200mm) grinding wheel spindle structure and design, enabling high-feed, high-efficiency grinding;

· The workpiece spindle is directly driven by a high-torque motor, improving the machine tool's transmission accuracy and dynamic response performance;

· Employs a high-precision, high-power dressing spindle, improving dressing accuracy and efficiency;

· Utilizes high-precision synchronous control technology, enabling precise wheel dressing and precision workpiece grinding;

· Automatic tool setting technology enables rapid automatic centering of workpiece tooth grooves and automatic allowance allocation;

· The pressure angle of the double-cone diamond roller can be automatically adjusted, achieving automatic compensation of the dressing angle;

· The workpiece spindle fixture interface adopts a quick-change structure, making fixture installation and adjustment convenient and fast, shortening auxiliary time;

· User-friendly operating interface, greatly facilitating user operation;
