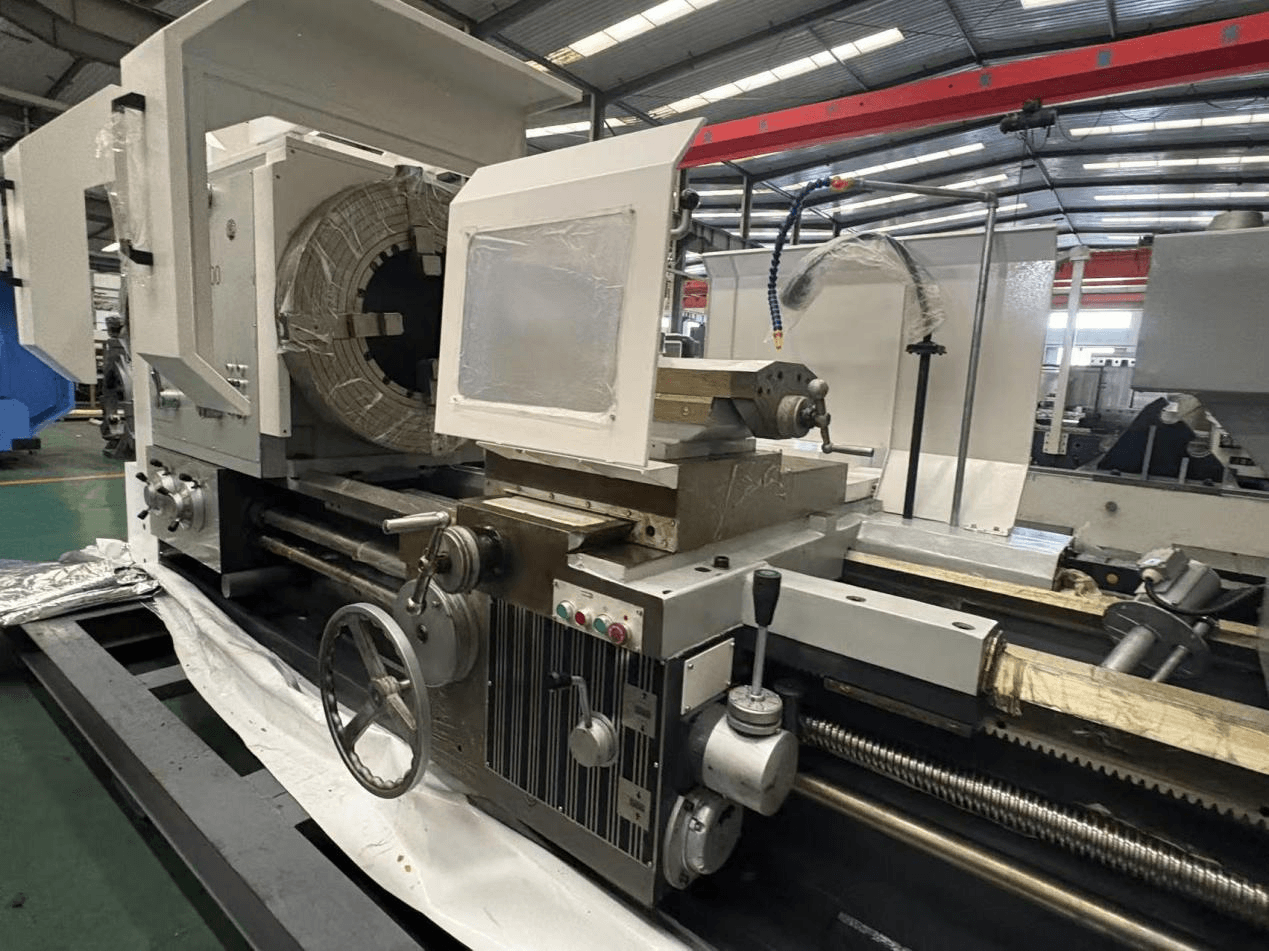

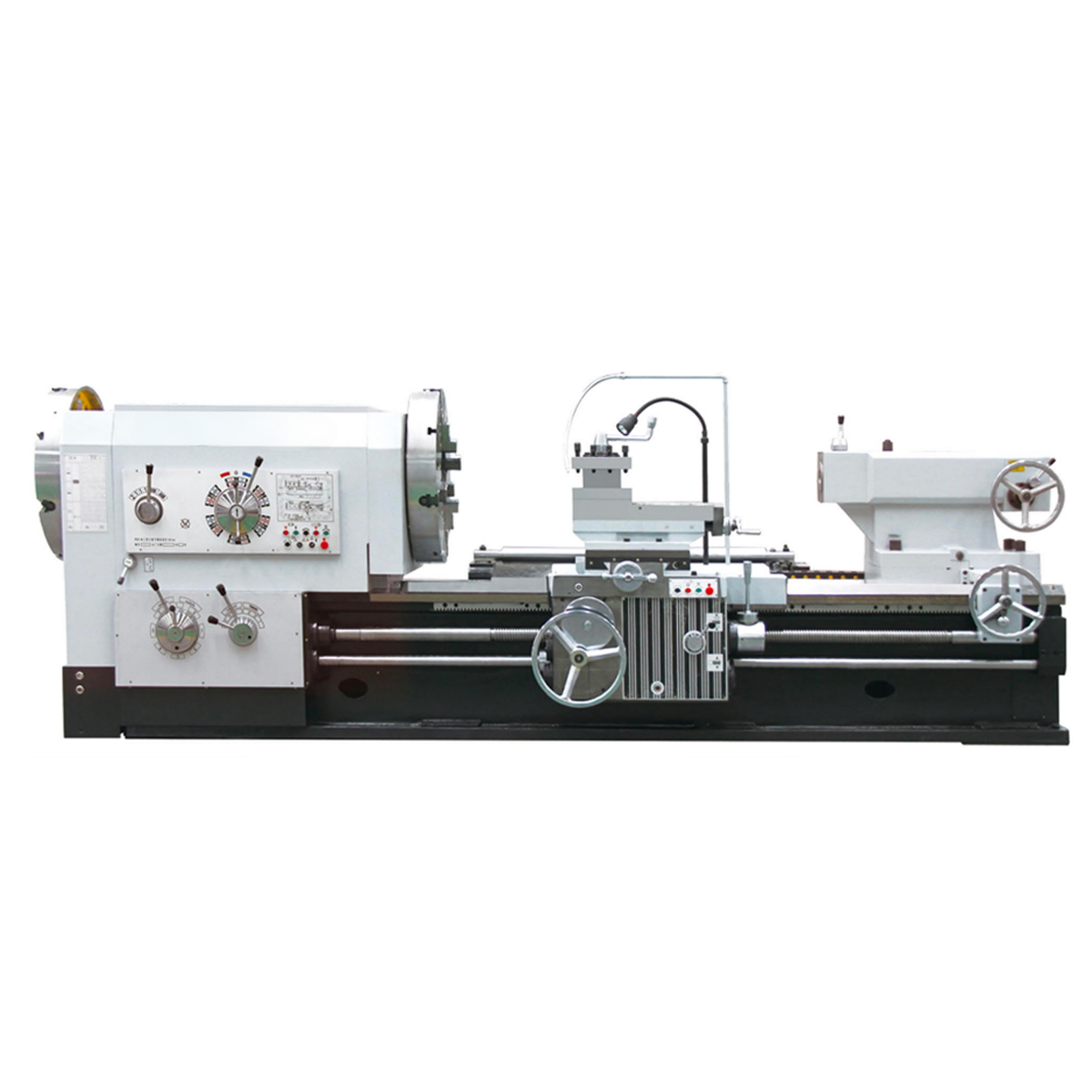

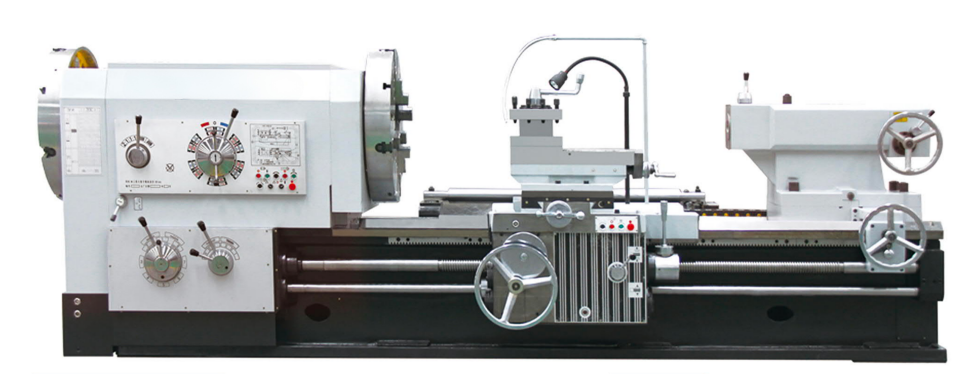

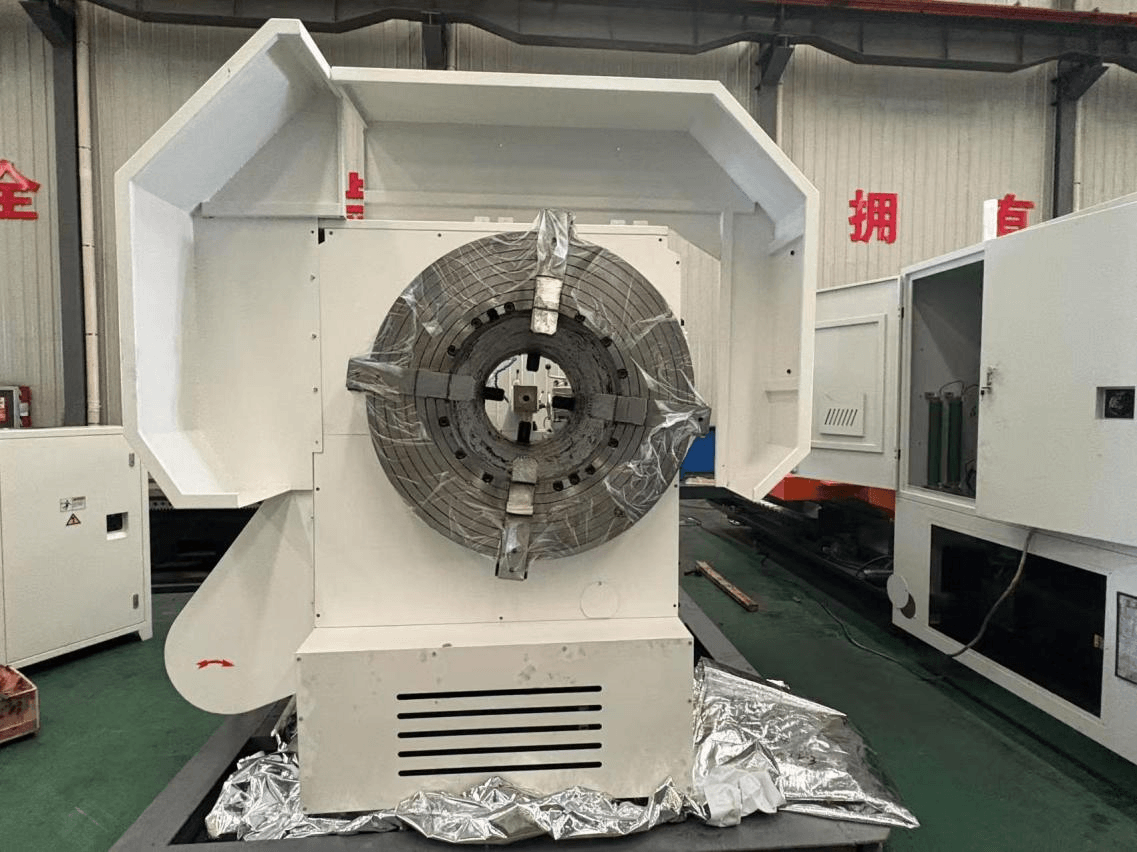

Q1338×6000 Ordinary Pipe Threading Lathe Machine Used To Machining Internal External Pipe Threads Outer Diameter Inner Diameter End Faces of Shafts And Discs
Q1338×6000 Ordinary Pipe Threading Lathe Machine Used To Machining Internal External Pipe Threads Outer Diameter Inner Diameter End Faces of Shafts And Discs
Q1338×6000 Ordinary Pipe Threading Lathe Machine Used To Machining Internal External Pipe Threads Outer Diameter Inner Diameter End Faces of Shafts And Discs
Q1338×6000 Ordinary Pipe Threading Lathe Machine Used To Machining Internal External Pipe Threads Outer Diameter Inner Diameter End Faces of Shafts And Discs
Q1338×6000 Ordinary Pipe Threading Lathe Machine Used To Machining Internal External Pipe Threads Outer Diameter Inner Diameter End Faces of Shafts And Discs
Q1338×6000 Ordinary Pipe Threading Lathe Machine Used To Machining Internal External Pipe Threads Outer Diameter Inner Diameter End Faces of Shafts And Discs
Q1338×6000 Ordinary Pipe Threading Lathe Machine Used To Machining Internal External Pipe Threads Outer Diameter Inner Diameter End Faces of Shafts And Discs
Q1338×6000 Ordinary Pipe Threading Lathe Machine Used To Machining Internal External Pipe Threads Outer Diameter Inner Diameter End Faces of Shafts And Discs
This machine tool is specifically designed for machining pipes. It is primarily used to machine internal and external pipe threads. It can also be used as a general-purpose lathe to machine the outer diameter, inner diameter, and end faces of shafts and discs.

  • Q1338×6000

库存： 0
Inquire

Q1338×6000 Ordinary Pipe Threading Lathe Machine Used To Machining Internal External Pipe Threads Outer Diameter Inner Diameter End Faces of Shafts And Discs

1. Machine model: Q1338×6000

Machine name: Ordinary Pipe Threading Lathe

Machine specification: Φ1250×6000



2. Main uses and functional characteristics of machine tools

This machine tool is specifically designed for machining pipes. It is primarily used to machine internal and external pipe threads. It can also be used as a general-purpose lathe to machine the outer diameter, inner diameter, and end faces of shafts and discs.



The machine tool features an integrated flat bed, facilitating operation and adjustment, chip removal, and workpiece loading and unloading. The longitudinal and transverse guideways are medium-frequency hardened, improving machine tool response speed and extending service life. The spindle drive system transmits power from the main motor to the spindle via belts and multi-stage gear transmission in the headstock. An electric composite chuck is installed on each side of the spindle; the two chucks clamp sequentially to ensure clamping accuracy when machining long pipes.

The machine tool's design is modern, aesthetically pleasing, practical, and user-friendly.

Ordinary Pipe Threading Lathe
Ordinary Pipe Threading Lathe
Ordinary Pipe Threading Lathe

Item

Unit

Specification

Processing range

Maximum slewing diameter of the bed frame

mm

Φ1250

Maximum workpiece rotation diameter on the horizontal slide

mm

Φ850

Maximum workpiece diameter

(short disc)

mm

Φ900

Distance between center (maximum)

mm

6000

Maximum workpiece length (outer diameter) that can be turned by the machine tool

mm

5800

Guide rail width

mm

755

Maximum load capacity

Kg

6000

Spindle

Processing pipe thread diameter range

mm

190-380

Spindle head type

short cylinder

Spindle bore

mm

Φ390

Spindle front bearing

mm

470

Spindle speed range

r/min

6-205 (forward rotation)

Number of spindle stages

9

Electric composite chuck diameter

mm

Φ850

Main motor power

Kw

22

Tailstock

Tailstock sleeve diameter

mm

Φ160

Tailstock sleeve moving distance

mm

300

Tailstock sleeve front end taper hole

Morse 6

Lateral movement of tailstock

mm

±15

Feed

Number and range of longitudinal feed rates

mm/r

32 types / 0.1–1.5

Number and range of transverse feed rates

mm/r

32 types / 0.05～0.75

Number and range of metric thread types to be machined

mm

23 types / 1 ~ 15

Number and range of imperial thread types

t/in

22 types / 2-28

Lead screw pitch

in

1/2″

Stroke

Maximum lateral travel of the lower tool post

mm

520

Maximum travel of the upper tool post

mm

300

Maximum longitudinal travel of the saddle

mm

5800

Maximum rotation angle of the tool post turntable

±90°

Vertical distance from spindle center to tool mounting reference surface

mm

48

Tool cross-section dimensions

mm

45*45

Cooling system

Coolant head

m

3.3

Flow

L/min

22

Accuracy

(standard specimen)

Precision turning outer diameter accuracy

IT7

Finish turning outer circle surface roughness Ra value

μm

Ra3.2

Roundness of precision-machined outer diameter

mm

≤0.015

Diameter consistency of finishing outer circle

mm

0.04/300

Finishing end face flatness

mm/mm

0.025/Φ300

Weight and appearance

Equipment main body appearance

White + Black

Total weight of machine tool

kg

18000

Overall dimensions

(length x width x height)

mm

9500×2100×1900
